The Open eXtensible Rack System

Read Docs Guides

Who

The OXRS community is made up of ambitious fellow makers and professionals brought together with a single vision to make home IoT control and automation accessible.

What

The Open eXtensible Rack System (OXRS) is a convention for building rack-mount devices using standardised chassis designs and modules.

Why

The IoT marketplace can often be fragmented and difficult to traverse. Devices created under OXRS convention by the community will be standardised to assist in compatibility.


Whats the aim of OXRS?

It aims to make it easier for anyone to build their own rack-mount devices by providing these foundational pieces in a modular form.

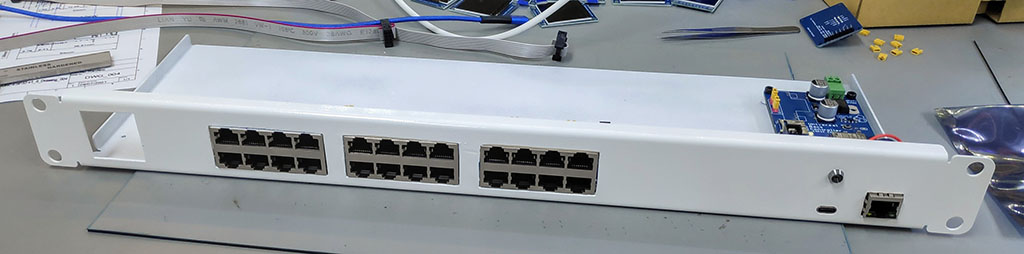

OXRS-prototype

This convention grew out of DIY home automation systems developed by members of the SuperHouse Automation Discord server, but also has applications for industrial control, networking, audio, video, and data center equipment.

Most rack-mount projects have some common elements, including:

  • Chassis
  • Display
  • Ethernet
  • USB
  • Power indicator

When individuals undertake DIY rack-mount projects it’s necessary to re-invent these foundational elements before it’s possible to create the specific functionality required for the intended project.

Mechanical and Electrical Compatibility

The convention outlines mechanical dimensions for enclosures including front panel cutouts and internal PCB mounts, allowing individual Makers and companies to produce components that are mechanically and electrically compatible.

OXRS-prototype

To join in the discussion, see the Discordopen in new window
